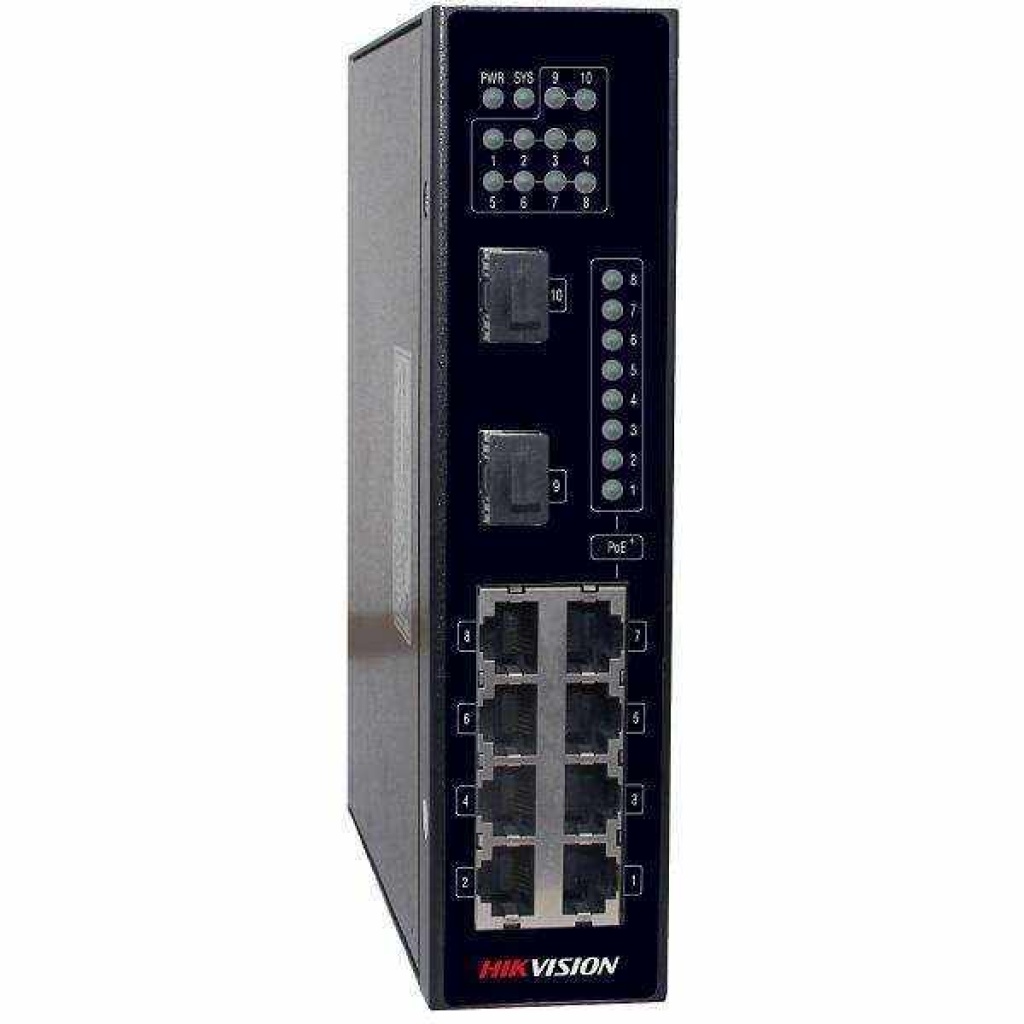

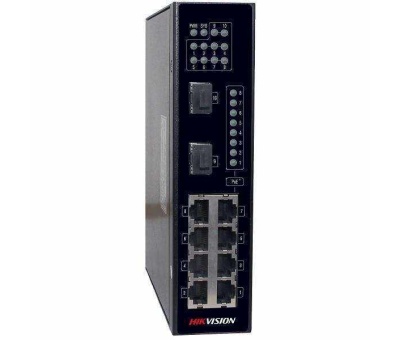

Hikvision NEI-ST258P2X 8 Port Gigabit PoE 2 Port SFP Endüstriyel Switch



High performance industrial PoE switch.
 NEI-ST258P2X supports IEEE 802.3AF/AT standard.
 POE port maximum output power 30W (input voltage is greater than 50V).
 Design of redundant dual power input.
 Working environment temperature of no fan -40℃to +75℃.
 The average failure time reached 400 thousand hours.
 IEEE802.3x full duplex, backpressure flow control

Features and Functions

Backplane 52Gbps
Forwarding rate 1.48Mpps
MAC 8K
Ports 8 1000M Base-T ports+2 1000Base-X ports
Dimensions(W×D×H)(mm) 155x130x42 / 170x156x42
Consumption <10W
POE/POE+ Support 802.3at/af
Power budget ≤120w (Based on power adapter)
Install method DIN rail
Power supply DC：44～57VDC
Environment
Operating temperature/humidity: -40℃-75℃，5%-95% non-condensing
Storage temperature/humidity: -40℃-85℃；5%-95% non-condensing
Protection Grade IP40
Management
Browser，，STD-17 MIB-II，，STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3,
SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, MRD Private MIBs，，
SSH，，HTTPS，，Telnet、、 NTP
Redundancy
RTSP/STP/MSTP/MRD-Ring/ link aggregation
Quality of Service QoS base on CoS/DPL
Each port support 8 output queueport shaping
SP,WRR queue scheduling
QoS based on DSCP
Security
users management
SSH
Https
SNMP V1/V2/V3
ACL
802.1x
loop protection
Flow Control
full duplex based on PAUSE frame
half-duplex based on back pressure type control
IGMP Snooping
IGMP Snooping base on vlan
EMI
FCC 47 CFR Part 15 Class A
EN55022 Class A
EMS
IEC (EN )61000‐4‐2, Class 4
IEC (EN )61000‐4‐4, Class 2
IEC (EN )61000‐4‐5, Class 2
IEC (EN )61000‐4‐11, Class 4
IEC (EN )61000‐4‐12, Class 4
