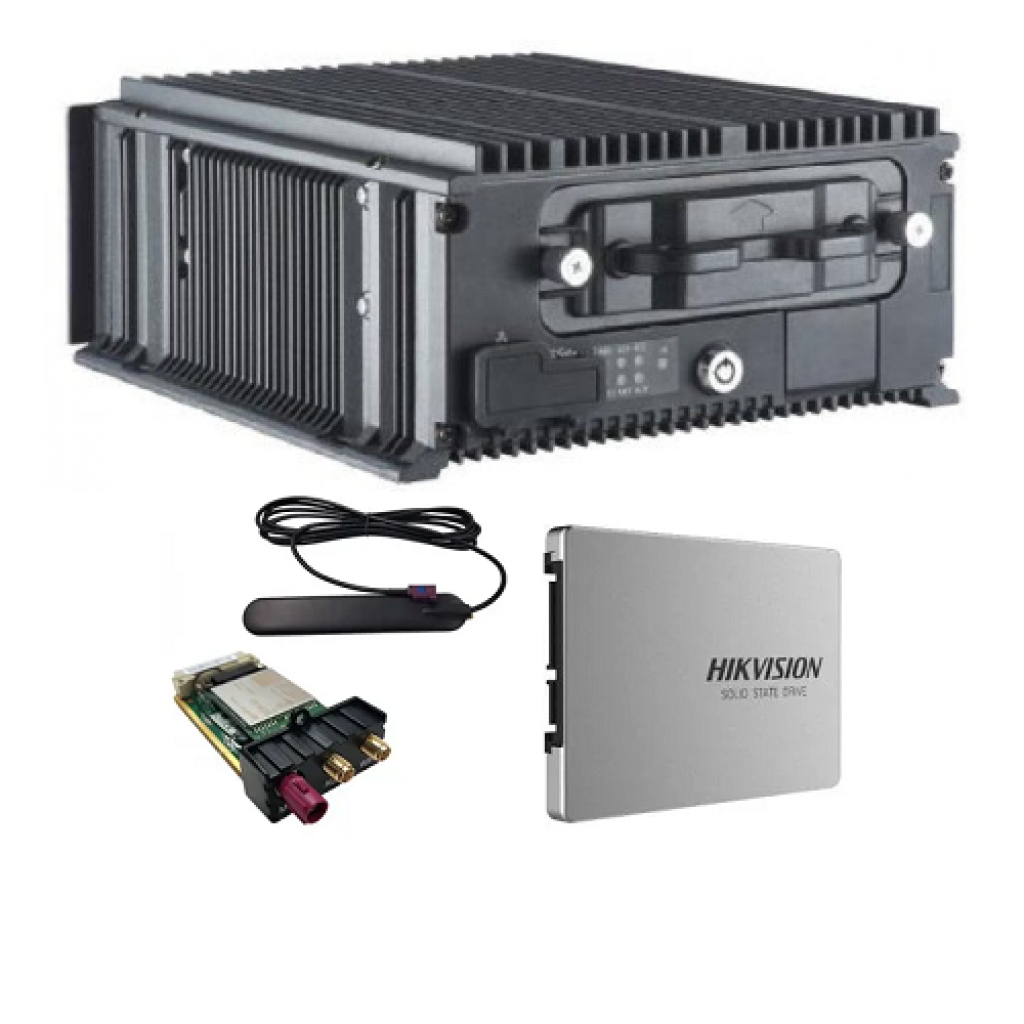

Hikvision NEI-MVR7608 8-Kanal Mobile Network Video Kayıt Cihazı
4.5 Hücresel Veri Anteni ve 2 adet 1TB Hikvision SSD Disk dahildir.
Main Feature
Connects 8-ch IP cameras via PoE interfaces . Connects 8 more IP cameras via PoE
Up to 1080p resolution of H.264/H.265 compression for each IP camera.
One CVBS video output interface.
One VGA video output interface with up to 1080p resolution.
Two pluggable 2.52.5-inch HDDs/SSDs , adopting hard disk vibration damping technology.
Stores videos on SD card when the HDD/SSD is damaged.
Pluggable 3G /4G module and Wi Wi-Fi module providing flexible data transmission solutions solutions.
BuiltBuilt-in G GPS (Global Positioning System) module precisely positioning the vehicle via the satellite and
recording the location information in the video streamstream.
Information collection interfaces collecting driving information such as left/right turn turning , braking , reversing,
Specialized aviation connectors ensuring signal stability stability.
Shutdown delay (0 h to 6 h) and 24 24-hour schedu led startup/shutdown shutdown.
Back up two upgrade packages to reduce risk of failure.
Battery protection avoids vehicle from running out of battery.
WideWide-range power input (+ 9 VDC to +3 2 VDC)VDC).
PowerPower-off protection prevents key data from loss loss.
SupportSupports accessing vi a WEB browser.
Aluminum die die-cast chassis chassis.
Housing is available for protecting mobile video recorder from water.
Specificationpecification
Model NEI-MVR7608 Video/Audio Input IP Camera
16 in total: 8 IP cameras connected via PoE interfaces, 8 IP cameras extendable via PoE interfaces Two-way Audio
1, integrated in EXT.DEV interface Video/Audio Output Video Output
1 CVBS output (PAL: 704 × 576, NTSC: 704 × 480), 1 VGA output (1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768) Audio Output
1 Encoding/Decoding Parameters Video Compression
H.264, H.265 Encoding Resolution
Main stream: 1080p/720p/WD1/4CIF, sub-stream: 4CIF/2CIF/CIF Frame Rate
PAL: 1 to 25fps; NTSC: 1 to 30fps Audio Compression
G.722Stream Type
Video, video & audio Audio Bitrate
16 Kbps Dual Stream
Supported Storage HDD/SSD
2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD
Dummy HDD with USB 3.0 interface SD Card
1 × SD card, up to 256 GB Wireless Network 3G/4G Dialing
1 × 3G/4G card slot, 1 × Rosenberger antenna Wi-Fi
WI58 model: 2 × 5.8 G Wi-Fi SMA antenna
WI model: 1 × 2.4 G Wi-Fi SMA antennaPositioning GNSS (Global Navigation Satellite System)
GPS (Global Positioning System), 1 × Rosenberger antenna PoE PoE Interface
8 × RJ45 PoE interface Max. Consumption
51 W External Interface Network Interface
2 × 10M/100M/1000M RJ45 Ethernet interface Serial Port
2 × RS-232. 1 × RS-485. 1 × RS-422 (integrated in EXT.DEV interface) CAN interface
2 USB Interface
●Front panel: 1 × USB 3.0
●Rear panel: 1 × USB 2.0 of 5-pin aviation plugSensor-in
4 high/low level signal inputs Alarm Input
4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input (reserved) Alarm Output
2 relay signal outputs General Operating Method
Mouse, IR remote control, Web control, and touchscreen Power Supply
9 to 32 VDC Consumption
●Standby: ≤ 0.5 W
●Full load: ≤ 99 W
Note: Without peripheral and storage media ≤ 20 W Working Temperature
●Device that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to 140°F)
●Other devices: -10 °C to +60 °C (14 °F to 140°F)Working Humidity
10% to 95% Dimensions (W × D × H)
202 × 267.6 × 93.9 mm (7.95 × 10.5 × 3.7 inch) Weight (Without Storage Media)
3.66 kg (8.07 lb)
