Hikvision NEI-MVR5604 Mobile Network Video Kayıt Cihazı

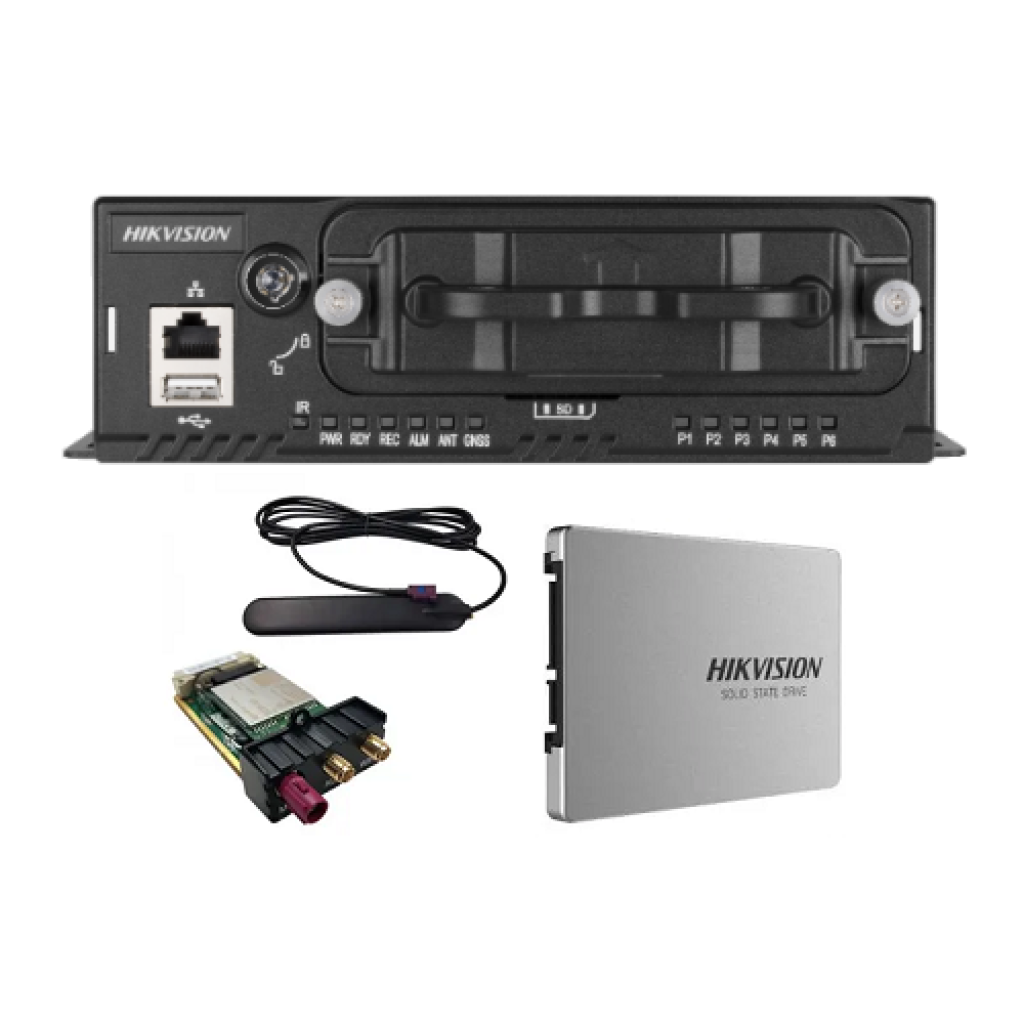

4.5 Hücresel Veri Anteni ve 2 adet 1TB Hikvision SSD Disk dahildir.

Key Feature
 4-ch IP cameras connectable via PoE interfaces, and 4-ch IP
cameras extendable via PoE switch.
 Up to 4 MP resolution of H.264/H.265 compression for each
IP camera.
 Two pluggable 2.5-inch HDDs/SSDs, adopting hard disk
vibration damping technology.
 Stores videos that have dropped frame in SD card when
HDDs/SSDs are damaged.
 User-friendly GUI providing easy and flexible operations.
 Pluggable 3G/4G module and Wi-Fi module providing flexible
data transmission solutions.
 Built-in GPS module precisely positioning the vehicle via the
satellite and recording the location information in the video
stream.
 Pluggable dummy HDD for HDD with up to 2 TB capacity.
 Information collection interfaces collecting driving
information such as left/right turn, braking, reversing, etc.
 Specialized aviation connectors ensuring signal stability.
 Shutdown delay (0 h to 6 h) and 24-hour scheduled
startup/shutdown.
 Battery protection avoids vehicle from running out of battery.
 Wide-range power input (+9 VDC to +32 VDC).
 Power-off protection prevents key data loss.
 Software-based firewall supported.
 Connectable to PTZ camera and PTZ control is supported.
 Supports accessing via WEB browser.

Specification
System

Operating
System
Embedded Linux
Video/Audio Input
IP Camera8-ch IP cameras inputs.
4-ch connected via PoE interfaces and 4-ch
extendable via PoE switch.
Two-way Audio1, integrated in EXT.DEV interface
Video/Audio Output
Video OutputMain output: 1, integrated in EXT.DEV
interface
VGA: 1
Audio Output1, integrated in AVOUT of EXT.DEV
interface
Encoding/Decoding Parameter
Video
Compression
H.264/H.265
Encoding
Resolution
Main stream:
4 MP/3 MP/1080p/720p/WD1/4CIF
Sub-stream: 720P/4CIF/2CIF/CIF
Frame RatePAL: 1 to 25 fps; NTSC: 1 to 30 fps
Audio
Compression
G.711/G.722.1
Stream TypeVideo, Video & Audio
Storage
HDD/SSD2 × 2.5 inch HDD/SSD, up to 2 TB for each
HDD/SSD
A dummy HDD with USB 3.0 interface
SD Card1 × SD card, up to 256 GB
Wireless Network
3G/4G DialingOptional.
WCDMA/TDD-LTE/FDD-LTE modules are
supported. 1 × 3G/4G card slot, 1 ×
Rosenberger antenna
Wi-FiOptional.
802.11B/G/N and 802.11AC are selectable.
1 antenna is needed for 802.11B/G/N
module. 2 antennas are needed for
802.11AC module
Positioning
GNSS (Global
Navigation
Satellite
System)
GPS (Global Positioning System) &
GLONASS (Global Navigation Satellite
System), 1 × Rosenberger antenna
PoE
PoE Interface4 × RJ45 PoE interface
Max.
Consumption
45 W
External Interface
Network
Interface
1 × 10M/100M RJ45 Ethernet interface
1 × 10M/100M M12 6-pin aviation
connector (Non-PoE)

Serial Port1 × RS-232, 1 × RS-422 (integrated in
EXT.DEV interface)
USB InterfaceFront panel: 1 × USB 2.0
Rear panel: 1 × USB 2.0 (5-pin aviation
connector)
Sensor-In4 high/low level signal inputs
Note: high level (6 to 36 VDC), low level (0
to 4 VDC )
Alarm Input4 high/low level signal inputs, 1 pulse signal
input, 1 BUTTON input
Note: high level (6 to 36 VDC), low level (0
to 4 VDC )
Alarm Output2 relay signal outputs
Note: high level (6 to 36 VDC), low level (0
to 5 VDC )
G-SensorBuilt-in G-Sensor & Gyro
General
Operating
Method
Mouse, IR remote control, Web control,
and touchscreen
Power Supply9 to 32 VDC
ConsumptionStandby: ≤ 0.5 W
Full load: ≤ 45 W
Note: Without peripheral and storage
media ≤ 20 W
Working
Temperature
Device that provides dummy HDD with
heating function: -30 °C to +60 °C (-22 °F to
+140 °F)
Other devices: -10 °C to +60 °C (+14 °F to
+140 °F)
Working
Humidity
10% to 95%
Dimension (W ×
D × H)
206 × 219 × 60 mm (8.1 × 8.62 × 2.36 inch)
Weight
(Without
Storage Media)
1.6 kg (3.5 lb)
CertificationCE/FCC/Emark/EN50155/CB/EN45545-
2/ROHS 2.0/WEEE/REACH/ISO-7637-
2/MIL-STD-810G
