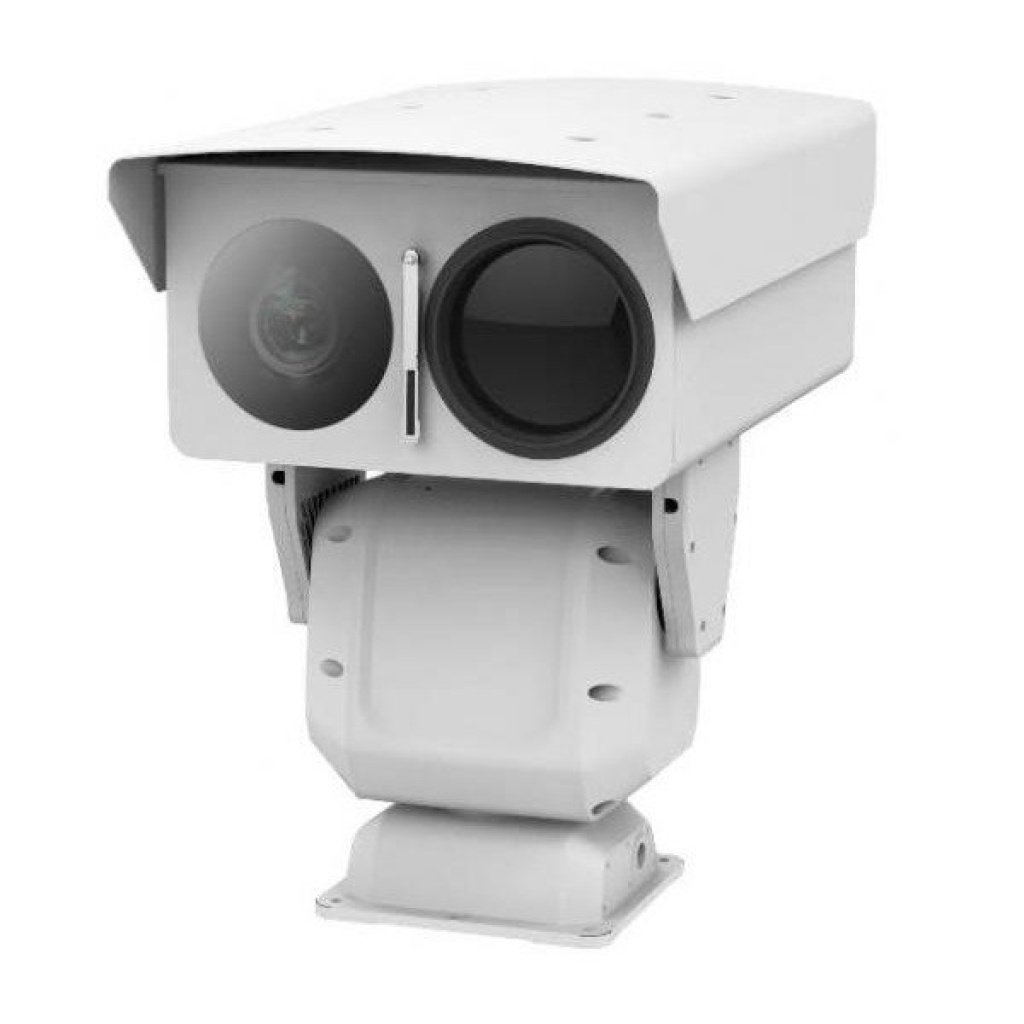

Hikvision NEI-BT2M8166 2 MP Termal ve Optik Bi-spectrum PTZ Network Akıllı IP Kamera
Thermal & Optical Bi spectrum Network Stable PTZ Camera equipped with built in GPU which support intelligent behavior analysis algorithm, can realize high precision VCA detection and
real time alarm. It is applied to frontier defense occasions, maritime defense occasions, port monitoring, airport perimeter secu rity, and so on. The pre alarm system helps you discover unexpected events immediately and protects you from property loss.
Smart Function (Thermal Imaging)
Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD < 4 0mk (0.05°C/32.09°F)
Smart tracking: Panorama tracking, Event tracking and Multi scene patrol tracking
Smart tracking linkage: thermal view and optical view
Powerful behavior analysis algorithm: Line crossing, Intrusion, Region Entrance & Exit
Reliable temperature exception alarm f unction
Advanced fire detection algorithm Thermal Imaging Module Function
640*512 resolution, high sensitivity sensor, support contrast adjustment
Support shutter adjustment in various modes
3D DNR, 1 5 palettes of color adjustable, image detail enhancement
Specifications
Thermal module Image sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 640 × 512
Detector Pitch 17μm
Response waveband 8μm to 14μm
NETD < 40mk (@25°C,F#=1.0)
Lens (focal length) 45 mm to 180 mm
MRAD 0.38 to 0.09 mrad Field of View
WIDE: 13.8° × 11°; TELE:3.46° × 2.77° Min.
Focusing Distance 5 m
Aperture F 1.2
Optical camera
Image Sensor 1/1.8 ” Progressive Scan CMOS
Min. Illumination
Color : 0.005 Lux @ (F3.5, AGC ON)
B/W : 0.0005 Lux @ (F3.5, AGC ON)
Focal Length 12.5-775 mm, 62 x
Field of View 31.5 ° × 23.9 ° to 0.51 ° × 0.39 ° (Wide-Tele)
Min. Working Distance 5 m (Wide-Tele)
Aperture Range F3.5 to Close Focus Mode
Auto / Semiautomatic / Manual WDR
Digital Shutter Time PAL: 1-1/30,000s / NTSC: 1-1/30,000s
White Balance Auto/ Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day & Night IR Cut Filter
Privacy Mask 24 privacy masks programmable; optional multiple colors and mosaics
Optical Defog Yes
Enhancement 3D DNR Smart function VCA
Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 10 scenes and 8 VCA rules for each scene.
Temperature Measurement Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
Temperature range -20 °C to 150 °C (-4 °C to 302 °F)
Temperature accuracy ± 8 °C (14.4 °F)
Fire detection Support 10 fire points
PTZ Movement Range Pan: 360° Continuous Rotate; Tilt: From -45 ° to + 45 ° (auto flip)
Pan Speed Configurable, From 0.01°/s to 40°/s
Tilt Speed Configurable, From 0.01°/s to 20°/s
Proportional Zoom Yes
Presets 300
Patrol Scan 8; Up to 32 Presets
Per Patrol Pattern Scan 4; More Than 10 Minutes Per Pattern
Power Off Memory Yes
Park Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PT Status Turn On/Turn Off Scheduled Task
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output Network Main Stream
Optical Light: 50Hz:25fps(1920×1080), 25fps(1280×960), 25fps(1280×720)
Optical Light: 60Hz:30fps(1920×1080), 30fps(1280×960), 30fps(1280×720)
Thermal: 50fps (640 × 512)
Sub stream
50Hz:25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
60Hz:30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 50fps (640 × 512) Video compression
H.265+/ H.264+/H.265/H.264/MJPEG, H.264 encoding with Baseline/Main/High Profile Audio compression
G .711u/G.711a/G.722.1/MP2L2/G.726/PCM Protocols
IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP, PPPoE, Bonjour Simultaneous live view
Up to 20-ch User/Host level
Up to 32 users, 3 levels: Administrator, Operator,
User Security measures User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering Integration
Alarm Input Up to 7-ch Relay Input (0-5V DC)
Alarm Output Up to 2-ch; Support Alarm Linkage
Alarm Action Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Audio Input LINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
Audio Output Linear Level; Impedance: 600Ω
Communication Interface Built-in RJ45; 10M/100M Ethernet Interface
Onboard Storage Built-in Micro SD/SDHC/SDXC Card Slot, Up to 64GB; Support Manual/Alarm Recording
Analog Video Output 1.0V [p-p]/75Ω, PAL/NTSC/BNC RS485
Half-Duplex; HIKVISION, PELCO-P and PELCO-D Self-adaptive
API Open-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
Client iVMS-4200 Web Browser
IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages
General Menu English
Wiper Yes
Power 48V DC/5A, 220W Work Temperature/Humidity From -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less
Protection Level IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension 649.2 mm × 438 mm × 261.3 mm (25.56 ‘’ × 17.24 ‘’ × 10.29 ‘’) Weight
Approx. 60kg (132.3 lb)
