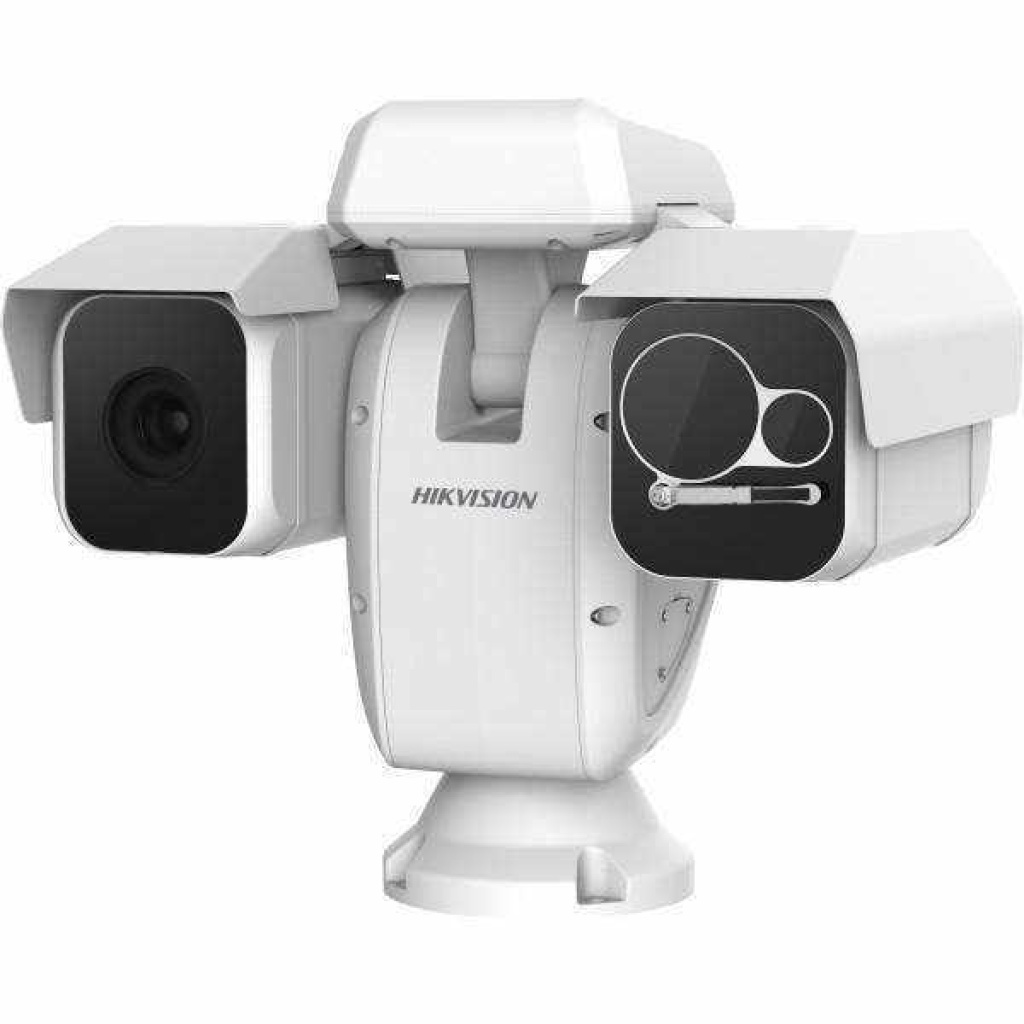

Hikvision NEI-BT2M6266 2 MP Termal ve Optik Bi-spectrum PTZ Network Akıllı IP Kamera
Thermal & Optical Bi spectrum Network Positioning System equipped with built in GPU which support intelligent behavior analysis algorithm, can realize high precision VCA detection and
real time alarm. It is applied to frontier defense occasions, maritime defense occasions, port monitoring, airport perimeter security, and so on. The pre alarm system helps you discover unexpected events immediately and protects you from property loss.
Smart Function (Thermal Imaging)
Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD < 4 0mk (@25°C, F#=
Smart tracking: Panorama tracking, Event tracking and Multi scene patrol tracking
Smart tracking linkage: thermal view and optical view
Powerful behavior analysis algorithm: Line crossing, Intrusion, Region Entrance & Exit
Reliable temperature exception alarm fu nction
Advanced fire detection algorithm Thermal Imaging Module Function
640*512 resolution, high sensitivity sensor, support contrast adjustment
Support shutter adjustment in various modes
3D DNR, 15 palettes of color adjustable, image detail enhancemen t
Specifications
Thermal module Image sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 640 × 512
Detector Pitch 17μm
Response waveband 8μm to 14μm
NETD < 40mk(@25°C,F#=1.0)
Lens (focal length) 100 mm
MRAD 0.17 mrad
Field of View 6.23° × 4.98° Min.
Focusing Distance 10 m
F number 1.0 Optical camera
Image sensor 1/2.8” Progressive Scan CMOS
Min. Illumination
Color : 0.05Lux @ (F1.8, AGC ON)
B/W : 0.01Lux @ (F1.8, AGC ON)
Focal Length 6.7-330mm, 49 X
Digital Zoom 16 X
Field of View 41.3° - 1.2° (Wide-Tele)
Min. Working Distance 10-1500mm(Wide-Tele)
Aperture Range F1.8-F6.1
Focus Mode Auto / Semiautomatic / Manual
WDR Digital
Shutter Time
PAL: 1-1/30,000s / NTSC: 1-1/30,000s
White Balance
Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day & Night
IR Cut Filter
Privacy Mask 24 privacy masks programmable; optional multiple colors and mosaics
Optical Defog Yes
Enhancement 3D DNR
Smart function VCA
Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 10 scenes and 8 VCA rules for each scene.
Temperature Measurement
Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
Temperature range
-20 °C to 150 °C (-4 °C to 302 °F)
Temperature accuracy
± 8 °C (14.4 °F)
Fire detection
Support 10 fire points
PTZ Movement Range
Pan: 360° Continuous Rotate; Tilt: From -90° to + 40° (auto flip)
Pan Speed
Configurable, From 0.1°/s to 110°/s
Tilt Speed
Configurable, From 0.1°/s to 50°/s Proportional Zoom
Yes Presets
300 Patrol Scan
8; Up to 32 Presets Per Patrol
Pattern Scan
4; More Than 10 Minutes Per Pattern
Power Off Memory Yes
Park
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PT Status
Turn On/Turn Off
Scheduled Task
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
Infrared IR Distance
Up to 500m IR
Intensity and Angle
Auto Adjust
Network Main Stream
Optical: 50Hz:25fps(1920 × 1080), 25fps(1280 × 960), 25fps(1280 × 720)
Optical: 60Hz:30fps(1920 ×1080), 30fps(1280 × 960), 30fps(1280 × 720)
Thermal: 50fps (640 × 512)
Sub stream
Optical: 50Hz:25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Optical: 60Hz:30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 50fps (640 × 512) Video compression
H.265+/ H.264+/H.265/H.264/MJPEG, H.264 encoding with Baseline/Main/High Profile
Audio compression
G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols
IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP, PPPoE, Bonjour
Simultaneous live view
Up to 20-ch User/Host level
Up to 32 users, 3 levels: Administrator, Operator,
User Security measures
User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering Integration
Alarm Input
Up to 7-ch Relay Input (0-5V DC)
Alarm Output
Up to 2-ch; Support Alarm Linkage
Alarm Action
Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Audio Input
LINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
Audio Output
Linear Level; Impedance: 600Ω
Communication Interface
Built-in RJ45; 10M/100M Ethernet Interface
Onboard Storage
Built-in Micro SD/SDHC/SDXC Card Slot, Up to 64GB; Support Manual/Alarm
Recording Analog Video Output
1.0V [p-p]/75Ω, PAL/NTSC/BNC
RS485
Half-Duplex; HIKVISION, PELCO-P and PELCO-D Self-adaptive
API
Open-ended; Support ONVIF, ISAPI and CGI; Support HIKVISION SDK and Third-Party Management Platform
Client
iVMS-4200
Web Browser
IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+;
Multiple Languages General Menu
English
Wiper
Yes
Power
24V AC, 120W
Work Temperature/Humidity
From -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less
Protection Level
Open-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
Dimensions
486.1 mm × 351.6 mm × 450.3 mm (19.14" × 13.84" × 17.73")
Weight
Approx. 19kg (41.89lb)
