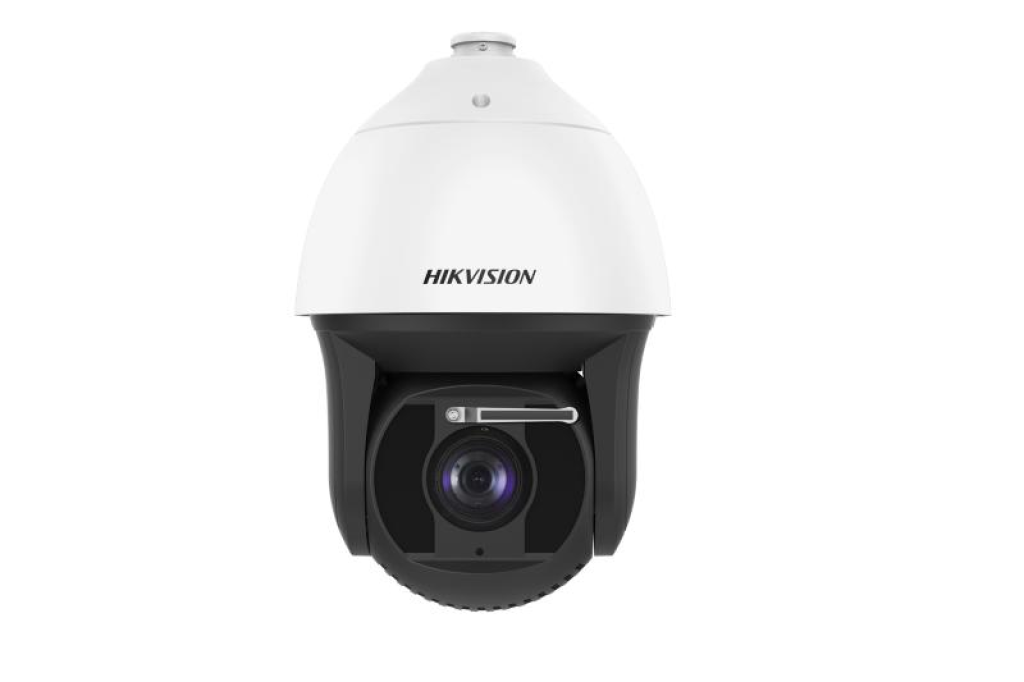

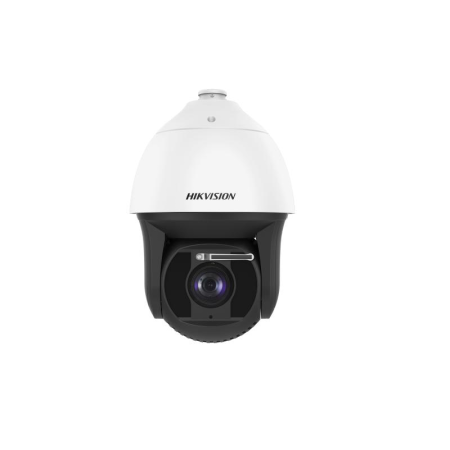

Hikvision AI-SCPW842 2 MP 42X Optic Zoom IR Speed Dome IP Camera
AI Supported 2MP, H265/H264, IP67 Certified, SSL Secure, up to 60m IR PTZ Camera
2MP 42× Network IR PTZ Camera belongs to the DarkFighterX camera family. With the patented dual-sensor design, it is able to process color and brightness independently and outputs one FULL-COLOR image.
This series of cameras can be widely used for wide ranges of high definition, such as the river, forest, road, railway, airport, port, square, park, scenic spot, station and large venue, etc.
Key Feature
Dual sensor, 1/1.8" progressive scan CMOS
Full color image output
Up to 2560 × 1440 resolution
Min. illumination:
Color: 0.0005 Lux @(F1.5, AGC ON)
B/W: 0.0001 Lux @(F1.5, AGC ON)
0 Lux with IR
35× optical zoom, 16× digital zoom
120 dB WDR, 3D DNR, HLC, BLC, EIS, Chromatic Defog
Support H.265+/H.265 video compression
Support rapid focus
Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
Up to 250 m IR distance. Smart IR
Rain-sensing auto wiper
IP67
4MP 35× Network IR PTZ Camera
Specification Camera Module
Image Sensor
Dual-sensor, 1/1.8" progressive scan CMOS
Min. Illumination
Color: 0.0005 Lux @(F1.5, AGC ON)
B/W: 0.0001 Lux @(F1.5, AGC ON)
0 lux with IR
White Balance
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Gain
Auto/Manual
Shutter Time
50Hz: 1/1 s to 1/30,000 s
60Hz: 1/1 s to 1/30,000 s
Day & Night
Controlled by dual-sensor
Digital Zoom
16×
Privacy Mask
24 programmable privacy masks with configurable color
Focus Mode
Auto/Semi-automatic/Manual
WDR
120 dB
Rapid Focus
Yes Lens
Focal Length
5.9 mm to 206.5 mm, 35× Optical
Zoom Speed
Approx. 4.4 s (optical lens, wide-tele)
Field of View
Horizontal field of view: 58.9° to 2.2° (wide-tele)
Vertical field of view: 35.3° to 1.2° (wide-tele)
Diagonal field of view: 65.9° to 2.5°(wide-tele)
Working Distance
10 mm to 1500 mm (wide-tele)
Aperture Range
F1.6 to F4.4 IR
IR Distance
Up to 250 m
Smart IR
Yes PTZ
Movement Range (Pan)
360° endless
Pan Speed
Configurable, from 0.1°/s to 210°/s,
Preset Speed: 280°/s
Movement Range (Tilt)
From -25° to 90°
Tilt Speed
Configurable, from 0.1°/s to 150°/s
Preset Speed: 250°/s
Proportional Zoom
Yes
Presets
300
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans, record time over 10 minutes for each scan
Power-off Memory
Yes
Park Action
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioning
Yes
PTZ Status Display
On/off
Preset Freezing
Yes
Scheduled Task
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output Compression Standard
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
H.264 Type
Baseline Profile/Main Profile/High Profile
H.264+
Yes
H.265 Type
Main Profile
H.265+
Yes
Video Bitrate
32 Kbps to 16384 Kbps
Audio Compression
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
SVC
Yes Smart Feature
Perimeter Protection
Intrusion, Line Crossing, Region Entrance, Region Exiting
Support alarm triggering by specified target types (human and vehicle)
Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.
Event Detection
Unattended Baggage Detection, Object Removal Detection, Face Detection, Audio Exception Detection
Motion Detection, Video Tempering Alarm, Exception (HDD Full, HDD Error, Illegal Login, IP Address Conflict, Network Disconnected)
Smart Tracking
Manual Tracking, Auto Tracking (support tracking specified target types such as human and vehicle), Event Tracking
Smart Record
ANR (Automatic Network Replenishment), Dual-VCA
ROI
Main stream, sub-stream and third stream respectively support eight fixed areas. Image
Max. Resolution
2688 × 1512
Main Stream
50Hz: 25fps (2688 × 1512, 2560 × 1440, 2048 × 1536,1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (2688 × 1512, 2560 × 1440, 2048 × 1536,1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Image Enhancement
HLC/BLC/3D DNR/Chromatic Defog/EIS/Regional Exposure/Regional Focus Network
Network Storage
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIPS), ANR
Alarm Linkage
Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Alarm Output, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API
Open-ended, support ONVIF, and CGI, support HIKVISION SDK and Third-Party Management Platform
Simultaneous Live View
Up to 20 channels
User/Host
Up to 32 users.
3 levels: Administrator, Operator and User
Security Measures
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Client
iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect, Hik-Central
Web Browser
IE8+, Chrome31-44, Firefox30-51, Safari 8.0-12 Interface
Alarm
7-ch alarm input/2-ch alarm output
Audio
1-ch Audio Input, 2.0 to 2.4Vp-p, 1k Ohm±10%
1-ch Audio output Line level, impedance: 600Ω
Network Interface
1 RJ45 self-adaptive 10 M/100 M Ethernet Interface
