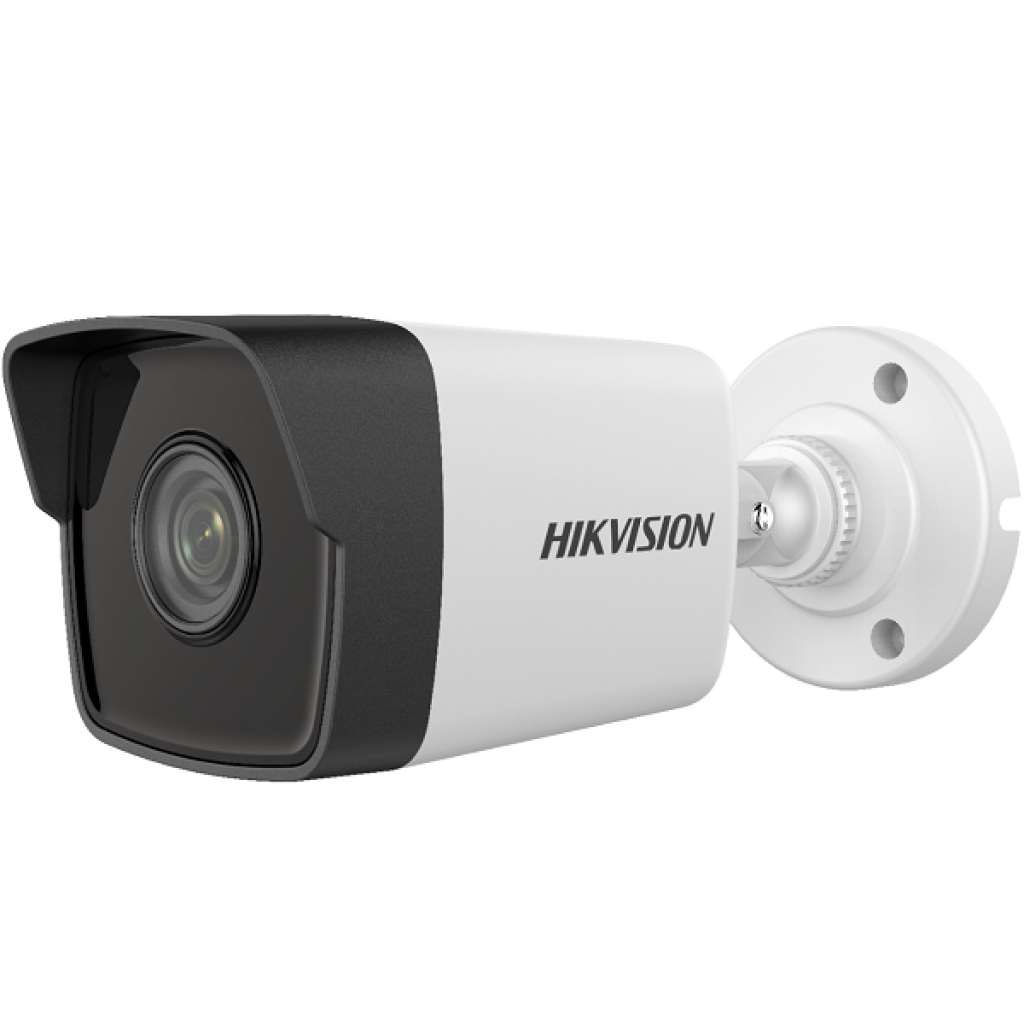

Hikvision AI-SCB341 4MP Akıllı Bullet Network IP Kamera
AI Supported 4MP, H265/H264, IP67 Certified, SSL Secure, up to 60m IR Bullet Camera
Key Features
1/3" progressive scan CMOS
BLC/3D DNR/ROI/HLC
2560 × 1440@20fps
Up to 40 m IR range
2.8 mm/4 mm/6 mm fixed lens
PoE (Power over Ethernet)
H.265+, H.265, H.264+, H.264
IP67
Three streams
2 Behavior analyses
120 dB WDR (Wide Dynamic Range)
Specification
Camera
Image Sensor
1/3" progressive scan CMOS
Min. Illumination
Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
Shutter Speed
1/3 s to 1/100, 000 s
Slow Shutter
Yes
Auto-Iris
No
Day &Night
IR cut filter
DNR (Digital Noise Reduction)
3D DNR
WDR (Wide Dynamic Range)
120 dB
Angle Adjustment (Bracket)
Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360° Lens
Focal Length
2.8 mm, 4 mm, 6 mm
Aperture
F2.0
Focus
No
FOV
2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58°
Lens Mount
M12 IR
IR Range
Up to 40 m
Wavelength
850 nm Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type
Baseline Profile/Main Profile/High Profile
H.264+
Main stream supports
H.265 Type
Main Profile
H.265+
Main stream supports
Video Bit Rate
32 Kbps to 8 Mbps Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection
Region of Interest
1 fixed region for main stream and sub-stream Image
Max. Resolution
2560 × 1440
Main Stream
Max. Frame Rate
50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
Max. Frame Rate
50Hz: 1fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240, 320 x 240)
60Hz: 1fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240, 320 x 240)
Image Enhancement
BLC, 3D DNR, HLC
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch
Auto, scheduled
Network
Network Storage
NAS (NFS, SMB/CIFS)
Alarm Trigger
Motion detection, video tampering alarm, illegal login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator, and User
Client
iVMS-4200, Hik-Connect, iVMS-5200
Web Browser
IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port General
Operating Conditions
-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and Current
12 VDC, 0.4 A, Max: 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
Protection Level
IP67
TVS 2000V lightning protection, surge protection and voltage transient protection
Material
Metal & Plastic
Dimensions
Camera: Ø 70 mm × 172.7mm ( 2.7" × 6.8")
With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight
Camera: approx. 280 g (0.62 lb.)
With package: approx: 530 g (1.17 lb.)
